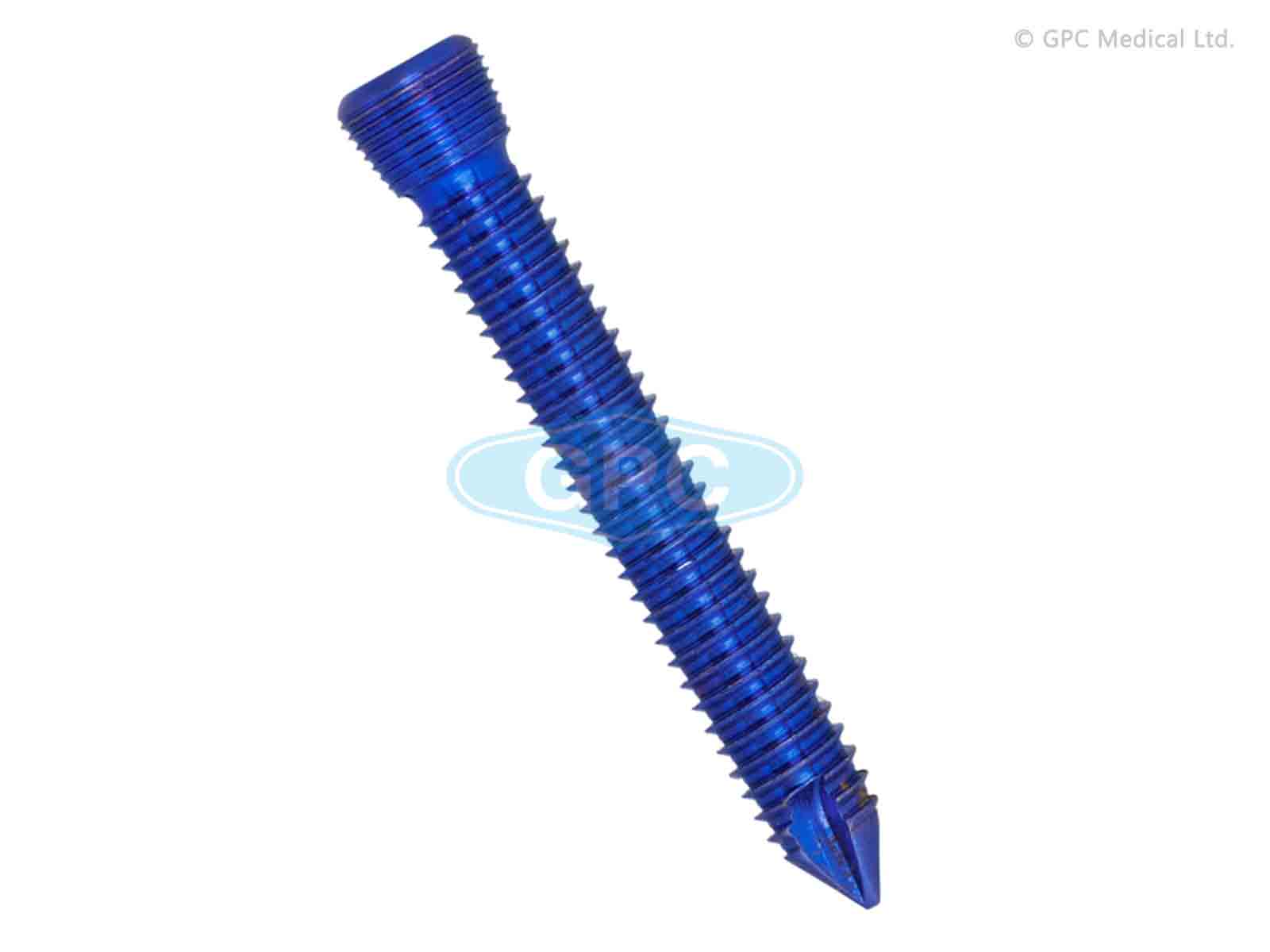

Self-Tapping Locking Screws, 5.0 mm
Self-Tapping Locking Screws, 5.0 mm
[ Model No. 700 ]
Product Availability: In Stock
We supply and ship our products worldwide!
All Our products are CE marked and FDA approved.
Thread dia. | 5.0 mm |
Head dia. | 6.7 mm |
Core dia. | 4.4 mm |
Lengths | 20 - 100 mm |
Drill bit used | 4.3 mm |
CODE | Length (mm) | |
S.S. | Titanium | |
700.14 | 700.14T | 14mm |
700.16 | 700.16T | 16mm |
700.18 | 700.18T | 18mm |
700.20 | 700.20T | 20mm |
700.22 | 700.22T | 22mm |
700.24 | 700.24T | 24mm |
700.26 | 700.26T | 26mm |
700.28 | 700.28T | 28mm |
700.30 | 700.30T | 30mm |
700.32 | 700.32T | 32mm |
700.34 | 700.34T | 34mm |
700.36 | 700.36T | 36mm |
700.38 | 700.38T | 38mm |
700.40 | 700.40T | 40mm |
700.42 | 700.42T | 42mm |
700.44 | 700.44T | 44mm |
700.46 | 700.46T | 46mm |
700.48 | 700.48T | 48mm |
700.50 | 700.50T | 50mm |
700.52 | 700.52T | 52mm |
700.54 | 700.54T | 54mm |
700.56 | 700.56T | 56mm |
700.58 | 700.58T | 58mm |
700.60 | 700.60T | 60mm |
700.65 | 700.65T | 65mm |
700.70 | 700.70T | 70mm |
700.75 | 700.75T | 75mm |
700.80 | 700.80T | 80mm |
700.85 | 700.85T | 85mm |
700.90 | 700.90T | 90mm |
