Quarter Tubular Plate, 2.7 mm Manufacturers

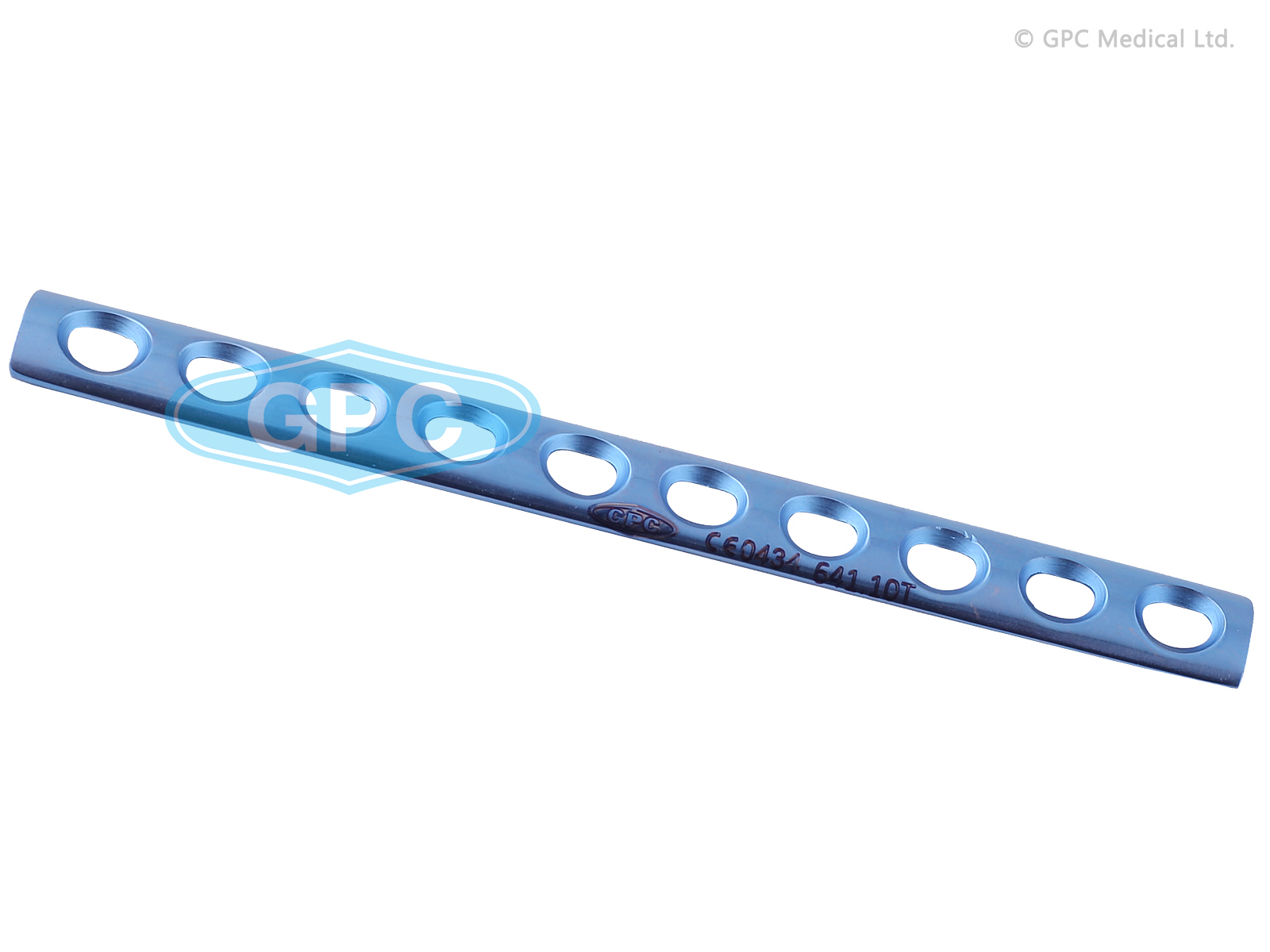

Quarter Tubular Plate, 2.7 mm

[ Model No. 641 ]

Product Availability: In Stock

indications

Used as tension band plate in fractures of metacarpals and metatarsals
Mainly applied as a neutralisation plate in lag screw ?xation of spiral, or oblique, fractures of the metacarpal bones to protect against shearing and bending forces

Send Inquiry

Request a Catalog

We supply and ship our products worldwide!

All Our products are CE marked and FDA approved.

Features

Designed as one quarter of a tube
Minimal soft tissue irritation
Provides rigid fixation
Fixed with 2.7 mm cortex screws
Available in both Titanium and Stainless Steel

Profile

Thickness (T): 1 mm
Width (W): 7 mm
Hole Spacing (HS): 8 mm

No. of Holes	CODE
No. of Holes	S.S.	Titanium
3	641.03	641.03T
4	641.04	641.04T
5	641.05	641.05T
6	641.06	641.06T
7	641.07	641.07T
8	641.08	641.08T
