L-Buttress Plates
L-Buttress Plates
[ Model No. 624 ]
Product Availability: In Stock
- Proximal tibia fracture
- Proximal humerus fracture
We supply and ship our products worldwide!
All Our products are CE marked and FDA approved.
Features
- Designed to buttress the lateral aspect of the tibial plateau
- L buttress plates have an offset head, one for the left and one for the right leg, to enable more lateral buttressing without disturbing the fibula
- Precontoured low profile plate
- Oblong hole in the plate allows temporary fixation of the plate to the bone to allow up and down adjustment
- Shaft holes fixed with cortex screw Dia. 4.5 mm and head holes fixed with 6.5 mm cancellous screw
- Side specific design- available in left and right
- Available in both Titanium and Stainless Steel

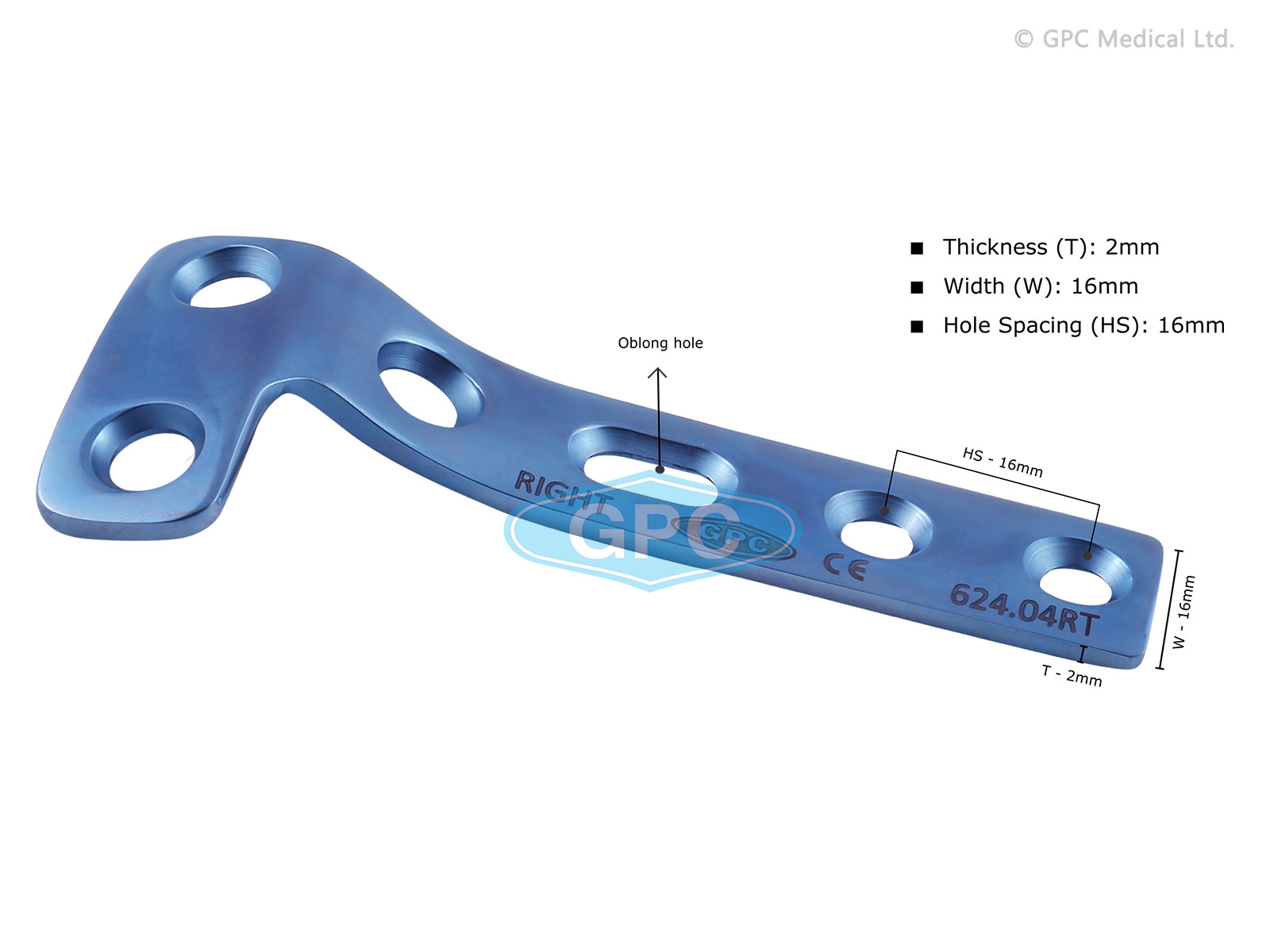

Profile
- Thickness (T) : 2 mm
- Width (W) : 16 mm
- Hole Spacing (HS) : 16 mm
No. of Holes | CODE - Left | |
S.S. | Titanium | |
3 | 624.03L | 624.03TL |
4 | 624.04L | 624.04TL |
5 | 624.05L | 624.05TL |
6 | 624.06L | 624.06TL |
7 | 624.07L | 624.07TL |
8 | 624.08L | 624.08TL |
9 | 624.09L | 624.09TL |
10 | 624.10L | 624.10TL |
11 | 624.11L | 624.11TL |
