Dynamic Self Compression Plate, 4.5 mm - Narrow Manufacturers

Dynamic Self Compression Plate, 4.5 mm - Narrow

[ Model No. 618 ]

Product Availability: In Stock

indications

Fractures and osteotomies of tibia and humerus
Nonunions and malunion of tibia and humerus fractures

Send Inquiry

Request a Catalog

We supply and ship our products worldwide!

All Our products are CE marked and FDA approved.

Features

Can be applied in various modes - compression, buttress and bridging mode
Used as neutralisation and tension band plate on tibia
Dynamic compression holes allow compression of fracture fragments
Has a middle section which is placed at the centre of the fracture
Fixation with 4.5 mm cortex screws and 6.5 mm cancellous screws
Available in both Titanium and Stainless Steel

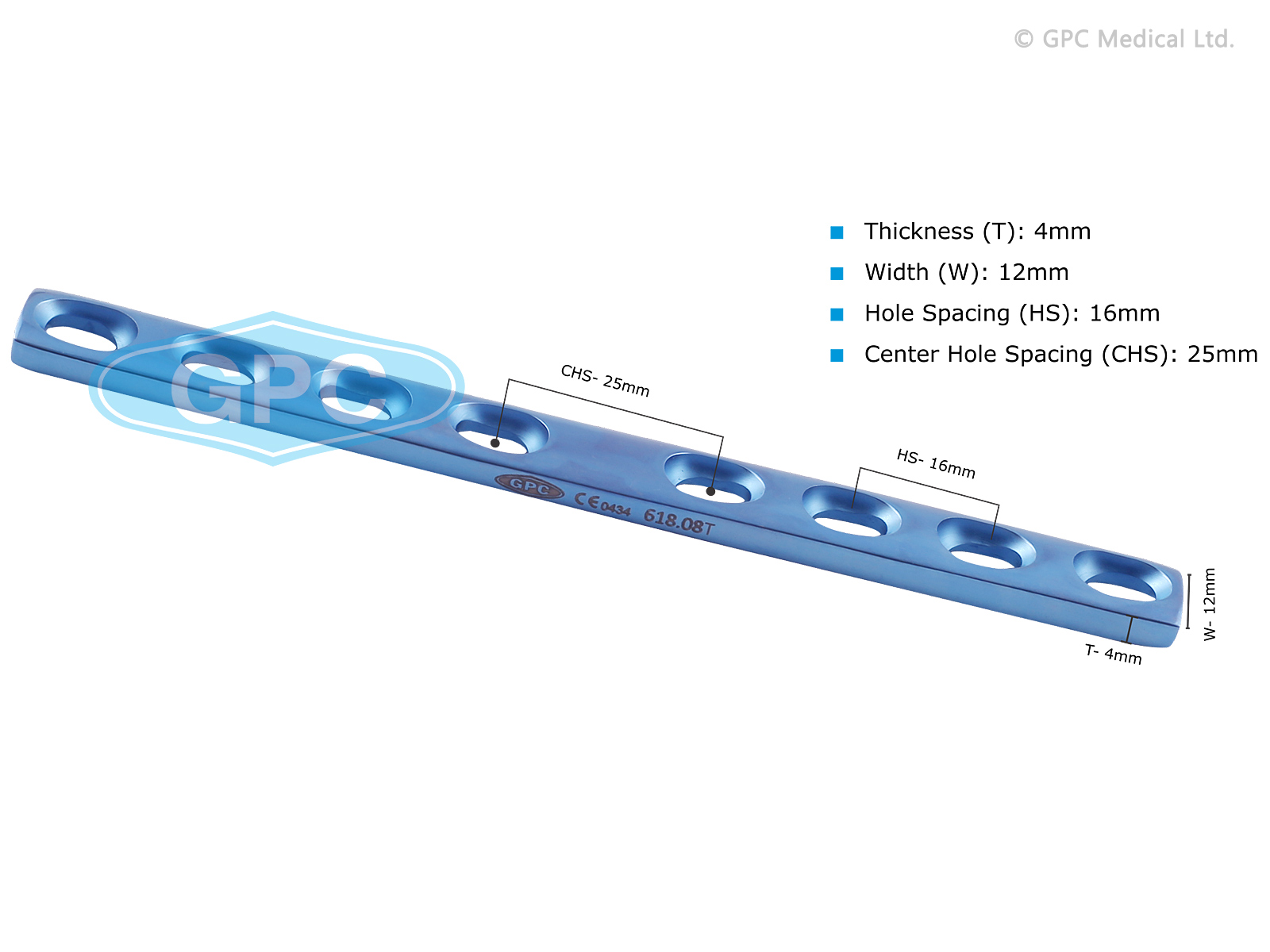

Profile (for S.S.)

Thickness : 4 mm (S.S.)
Width                              : 12mm
Hole Spacing    : 16 and 25mm
Center Hole Spacing   : 25 mm

Sizes Available

No. of Holes	CODE
No. of Holes	S.S.	Titanium
2	618.02	618.02T
3	618.03	618.03T
4	618.04	618.04T
5	618.05	618.05T
6	618.06	618.06T
7	618.07	618.07T
8	618.08	618.08T
9	618.09	618.09T
10	618.10	618.10T
11	618.11	618.11T
12	618.12	618.12T
13	618.13	618.13T
14	618.14	618.14T
